How a Call Moves Through the VICIdial Dialplan

Fast answer: Asterisk, the open-source telephony engine underneath VICIdial, reads its call-routing rules from a text file called `extensions.conf`, organized into named contexts that each contain extensions, and each extension runs a numbered list of priorities in order. VICIdial almost never edits that file by hand: campaign, carrier, and phone settings live in MariaDB tables, and a generator process writes a companion file, `extensions-vicidial.conf`, every time those settings change. A live call is Asterisk stepping through one context's priorities: answer, maybe run an AGI script, `Dial()` somewhere, then hang up.

In plain language: Asterisk is the open-source phone switch VICIdial is built on top of; a channel is one call leg inside Asterisk, so a single conversation between a customer and an agent normally involves at least two channels bridged together; a carrier is the phone company or SIP trunk provider that actually carries a call to the public telephone network; a trunk is the pooled connection your server keeps open to that carrier; a DID is a phone number the carrier hands you for inbound calls to arrive on; and a conference is the Asterisk room where an agent leg and a customer leg get mixed so both sides can hear each other.

This article follows one real path end to end, cited against VICIdial's own shipped docs: how extensions.conf is structured, how VICIdial regenerates its own dialplan from the vicidial_server_carriers table, how a call actually leaves through a carrier in the vicidial-auto include chain, why a Local channel sits in the middle of that path, where AMD and call recording hook into the same dialplan, and how an inbound DID finds its way to a call menu or an agent.

extensions.conf: Contexts, Extensions, and Priorities

`/etc/asterisk/extensions.conf` is the main Asterisk dialplan file. Asterisk's pbx_config module loads it at startup, and again on a dialplan reload, and builds an in-memory tree of every context, extension, and priority it finds. Everything a caller experiences — being answered, hearing a menu, reaching an agent, getting recorded, being hung up — is Asterisk walking that tree for one channel.

A context is a named, isolated bucket of extensions, written as a name in square brackets like `[vicidial-auto-external]`. Contexts exist for access control as much as organization: a channel can only reach the extensions in the context it was handed at answer time, plus anything it explicitly includes, so an inbound carrier trunk and an agent phone are normally placed in different contexts on purpose, to stop one from accidentally dialing the other's rules.

An extension is one `exten =>` line, matched against the digits a channel is dialing, or a special name such as `s` for start, and a priority is a single numbered step inside that extension. Priorities run in order, one first, and each one calls exactly one Asterisk application — `NoOp()`, `Answer()`, `Dial()`, `Hangup()`, and so on. Writing out two, three, four by hand is tedious and error-prone, so `same => n` exists to mean the next priority in the same extension without repeating its name or number — but it is a style choice, not a rule every generated line follows, as the next example shows.

The block below is VICIdial's own shipped example Dialplan Entry for a PJSIP carrier, verbatim from the PJSIP support document. It is a complete, working extension: one context implied by where the carrier's dialplan_entry text is concatenated (the next section explains exactly where that happens), one exten pattern, and three priorities. `_91NXXNXXXXXX` and `PJSIPCARRIER` are the vendor's own example dial pattern and carrier name in that document, not placeholders for you to fill in — a real carrier's saved entry uses whatever dial pattern and carrier name you actually configured.

exten => _91NXXNXXXXXX,1,AGI(agi://127.0.0.1:4577/call_log)exten => _91NXXNXXXXXX,n,Dial(PJSIP/${EXTEN:1}@PJSIPCARRIER,${CAMPDTO},To)exten => _91NXXNXXXXXX,n,Hangup()

How extensions-vicidial.conf Gets Built

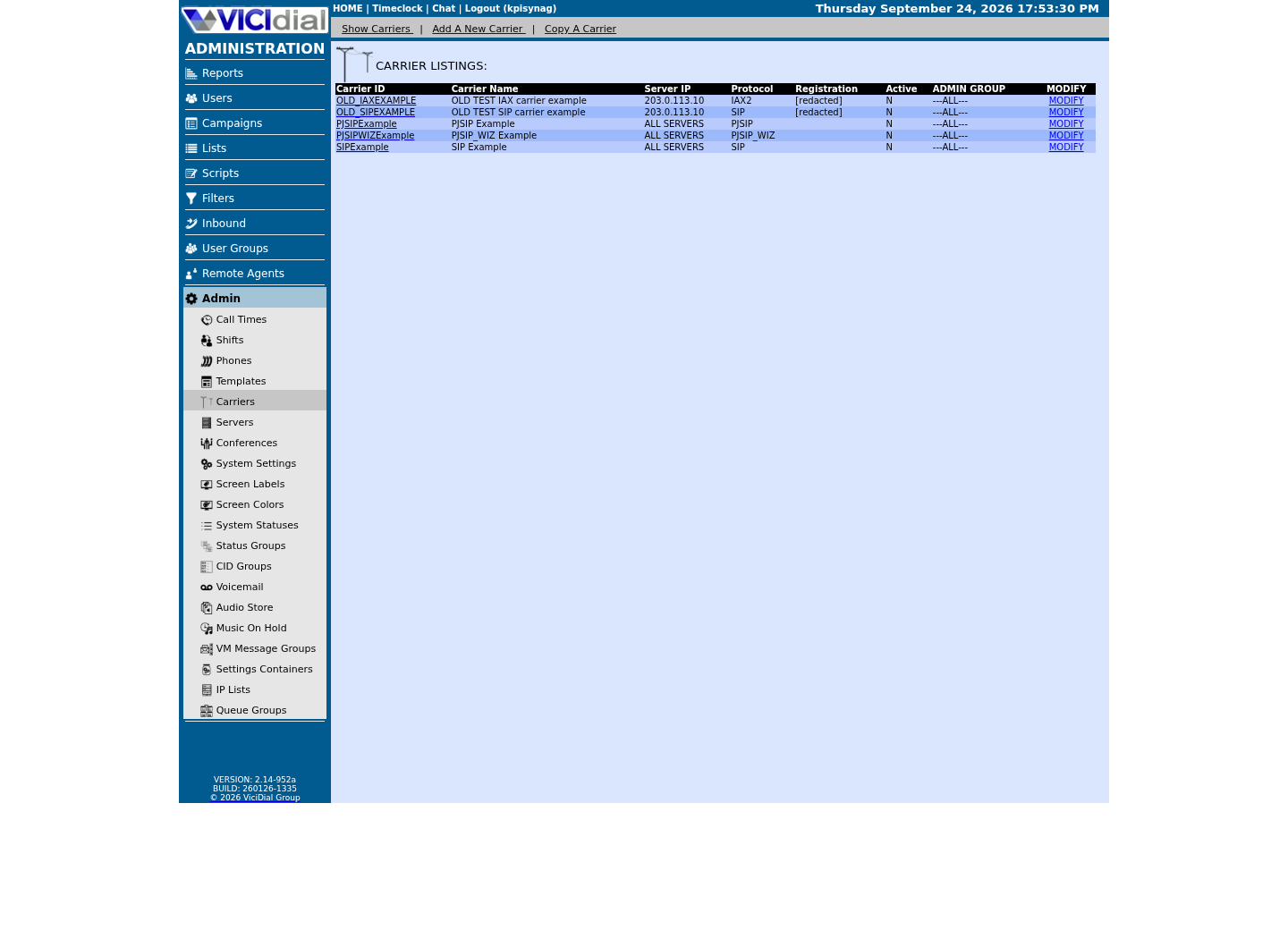

VICIdial keeps carrier and dialplan configuration in MariaDB, not in a text file an admin edits directly. The vicidial_server_carriers table has a dialplan_entry column that holds exactly the dialplan text shown in the previous section, one row per carrier, and an account_entry column holding the matching PJSIP or SIP account stanza.

When an admin saves a carrier, or servers.rebuild_conf_files otherwise flips to Y, VICIdial's own generator — ADMIN_keepalive_ALL.pl on a running system — reads every active carrier row for that server, concatenates their dialplan_entry values, and writes the result to /etc/asterisk/extensions-vicidial.conf. It performs the equivalent work for PJSIP accounts into /etc/asterisk/pjsip-vicidial.conf, clears rebuild_conf_files back to N, and reloads the PJSIP and dialplan modules in Asterisk. Each carrier's own dialplan_entry text is a complete exten block for the shared vicidial-auto-external context, so the generator's job is concatenation, one block per active carrier; this article cannot verify any stronger ordering guarantee than that from the shipped docs alone, so confirm on your own server with the dialplan show sample below rather than assuming a specific carrier order.

A fresh install pre-creates one empty placeholder file for each piece VICIdial can generate: extensions-vicidial.conf, sip-vicidial.conf, iax-vicidial.conf, pjsip-vicidial.conf, pjsip_wizard-vicidial.conf, voicemail-vicidial.conf, meetme-vicidial.conf, and musiconhold-vicidial.conf. Asterisk's own stock files pull these in through plain #include directives — confirmed directly for PJSIP, where /etc/asterisk/pjsip.conf ends with an #include line for pjsip-vicidial.conf, and /etc/asterisk/pjsip_wizard.conf is nothing but an #include of pjsip_wizard-vicidial.conf. extensions.conf follows the same include pattern from VICIdial's own install process; confirm it on your own box by running grep vicidial /etc/asterisk/extensions.conf.

SELECT carrier_id, protocol, server_ip, activeFROM vicidial_server_carriersWHERE carrier_id = '<CARRIER_ID>'; SELECT server_ip, active, generate_vicidial_conf, rebuild_conf_filesFROM servers;

Dialing Out: How a Call String Leaves Through vicidial-auto-external

Outbound calls in VICIdial, whether an agent dials manually or the predictive or ratio engine dials automatically, never call a carrier directly from PHP or Perl. manager_send.php, or an automatic dialer such as AST_VDauto_dial.pl, inserts a command row into the vicidial_manager table; AST_manager_send.pl claims that row and sends the actual Asterisk Manager Interface Originate action. Only Asterisk itself ever places the call.

That AMI Originate targets a Local channel into the default context. The default context begins with include => vicidial-auto, and vicidial-auto in turn includes vicidial-auto-internal, vicidial-auto-phones, and vicidial-auto-external, in that order — VICIdial's own generator, ADMIN_keepalive_ALL.pl, adds vicidial-auto-server-custom and vicidial-auto-system-setting-custom after those three only when a Server's or a System Setting's own Custom Dialplan Entry field is actually filled in.

Once a dialed string lands in vicidial-auto-external, the extension there runs an AGI call-logging hook first — removing it silently stops outbound call logging for that route — then Dial(PJSIP/${EXTEN:1}@carrier_id,${CAMPDTO},To), using the carrier or trunk name from vicidial_server_carriers and the campaign's own dial timeout rather than a fixed number of seconds.

That include order has a real consequence: because vicidial-auto-external comes before the two custom contexts, a carrier's own dial pattern wins over a custom dialplan entry for the same digits, not the other way around. `asterisk -rx 'dialplan show <DIGITS>@default'` shows which of these included contexts a given dial string would actually match on your server; `asterisk -rx 'dialplan show vicidial-auto-external'` shows every carrier's own route in isolation, the same carrier concatenation the previous section describes, without the rest of the vicidial-auto chain around it.

asterisk -rx 'dialplan show vicidial-auto'

Why a Local Channel Sits Between the Agent and the Carrier

A Local channel is a pair of virtual channels Asterisk bridges to each other internally; nothing external ever touches them directly. Asterisk names each half like Local/<extension>@<context>-<uniqueid>;1 and ;2, so whatever runs on one half stays invisible to the trunk or phone on the other side. VICIdial uses this in two different, real places in its dialplan.

First, a phone provisioned with protocol=EXTERNAL in VICIdial's phones table is not a real SIP device at all: it maps straight to Local/<dialplan_number>@<ext_context>. That lets a script, an API integration, or a remote-agent station join an agent conference without ever registering a phone.

Second, in predictive and ratio auto-dialing, the AMI Originate itself targets a Local channel into the default context rather than the carrier trunk directly. Once the far end answers, a small local-optimizer piece of dialplan hands the call to agi-VDAD_local_optimize.agi, which decides whether a live person is actually on the line, then issues a vicidial_manager Redirect to move the surviving leg into the outbound AGI extension that finally joins a waiting agent's conference. The Local channel exists so VICIdial can commit to dialing the carrier before it knows whether an agent conference should be involved at all.

That is also why Redirect shows up so often next to Originate in VICIdial's AMI action list: a Local channel gives the manager daemons a safe place to move a call between contexts mid-flight, instead of hanging up one channel and originating a fresh one.

grep -n '#include' /etc/asterisk/extensions.conf /etc/asterisk/pjsip.conf /etc/asterisk/pjsip_wizard.conf

Where AMD and call recording hook into the dialplan

Answering Machine Detection, usually called AMD, runs on the outbound leg right after it answers and before an agent is ever involved, using Asterisk's own app_amd module. On this build, extension 8369 in extensions.conf shows the real sequence: AGI(agi://127.0.0.1:4577/call_log), Playback(sip-silence), AMD(2000,2000,1000,5000,120,50,4,256), AGI(VD_amd.agi,${EXTEN}), AGI(agi-VDAD_ALL_outbound.agi,...), Hangup(). VD_amd.agi reads the AMD() result and decides whether to connect a person to an agent, drop the call, or route it to a machine-message path, depending on campaign settings, before agi-VDAD_ALL_outbound.agi continues the call.

Agent-screen recording is a separate mechanism, and not the one a generic Asterisk dialplan tutorial would lead you to expect: stock VICIdial does not use MixMonitor() here. Clicking Record on the agent screen calls agc/manager_send.php with action MonitorConf, which writes a recording_log row, then queues an AMI Originate into the campaign's own Recording Extension — campaign_rec_exten, 8309 by default. On this build's extension 8309, the dialplan is exactly Answer(), Monitor(wav,${CALLERID(name)}), Wait(3600), Hangup() — Asterisk's older Monitor() application, not MixMonitor(). res_monitor is loaded but marked deprecated upstream; VICIdial still ships against it. Extension 8310 is the same shape, recorded to gsm instead of wav.

Monitor() writes separate -in and -out files rather than one mixed file, which is exactly why a join step exists. On this build, root's own crontab runs AST_CRON_audio_1_move_mix.pl --MIX and AST_CRON_audio_1_move_VDonly.pl every 3 minutes, and AST_CRON_audio_2_compress.pl --MP3 every 3 minutes offset by one, so joining and MP3 compression each run on their own 3-minute cycle. Only once that pipeline finishes does recording_log.location in MariaDB point at a real, retrievable file; a row with an end time and a positive duration is not proof a recording exists yet — confirm the exact worker names on your own install rather than assuming this article's description matches your revision.

StopMonitorConf, the counterpart action, writes recording_log's end_time and length, then queues an AMI Hangup of that one recording leg specifically — it does not touch the live customer or agent channels. manager_send.php also defines Monitor, MonitorStereo, StopMonitor, StopMonitorStereo, and MuteRecording actions for the same recording-control family, and AST_manager_send.pl turns whichever one fires into the matching AMI action, never a second, competing sender.

asterisk -rx 'dialplan show 8309@default'

Inbound: How a DID Finds an Agent

Inbound routing starts before Asterisk even runs a dialplan: a carrier delivers the call into whatever context you assigned that trunk or DID to in Admin → Carriers or Inbound → DIDs, exactly the same context mechanism from earlier in this article, just used as a security boundary between untrusted inbound trunks and everything else.

From there VICIdial's own AGI family takes over. agi-DID_route.agi, backed by call_inbound.agi and related inbound AGIs, looks up the dialed DID, applies call-time and holiday schedules, and decides where the call goes next: a call menu, an in-group queue, a specific extension, or voicemail.

A call menu is driven by cm.agi and its cm_* family of AGI scripts, which play prompts, collect DTMF, and branch into another menu, an in-group, an extension, a lookup, or a hangup, entirely from data an admin enters on the call-menu screens rather than from separately hand-written dialplan.

An in-group is VICIdial's queue: it holds waiting calls, tracks priority and overflow rules, and becomes visible to any agent who has registered for it through the regCLOSER action on the Agent screen. A blended or inbound-manual agent effectively joins a queue the same in-group AGIs feed calls into, which is why the same conference and Local-channel machinery from earlier sections applies to inbound calls reaching an agent, not only outbound ones.

• The carrier or trunk is pointed at the context you expect under Admin → Carriers
• The DID exists and is mapped to the right in-group or call menu under Inbound → DIDs
• Call times and holidays for that in-group allow calls right now
• At least one agent is registered for the in-group, via regCLOSER, if it should ring an agent
